Fun-loving and hard-working.

The all-new Creta rewrites the book on compact crossovers. The style is sensuous and sporty, reflecting Creta’s impressive dynamic capabilities and fun-loving driving personality.

Exterior

Colors

Parametric Jewel Pattern Grille & Hidden-type LED DRL

LED Rear Combination Lamp

17” Alloy Wheels & 17” Diamond Cut Alloy Wheels

Within The Spotlight

The ultimate flexibility & comfort.

Panoramic Sunroof

Leather Seat

60 : 40 seat

Flat and Plenty Space

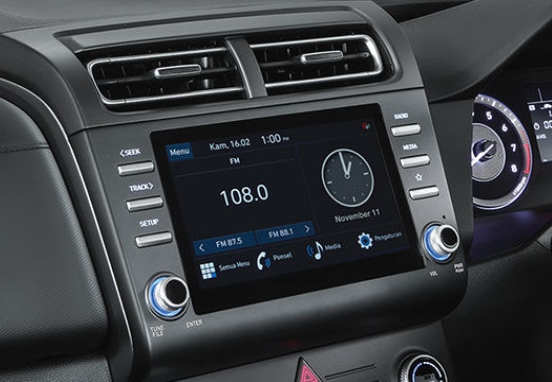

Display Audio with Smartphone Integration

Ambient Mood Lamp

Electronic Parking Brake with Autohold

Tilt and Telescopic Steering Wheel

Seat Configuration

BOSE Premium Sound System

Wireless Smartphone Charger

Ventilated Seat

Console Armrest With Air Purifier

Connect With Your Car

Your Safety is Our Priority

Ensure Proper Health of Your Car

Convenience at your fingertips

Round-the-clock Security for Your Car

Push Start Button

Personal Lamp

Full Automatic Temperature Controls

Cooling Glove Box

Rear USB Charging Port

Rear Center Armrest with Cup Holders

Eco Mode

Comfort mode

Smart Mode

Sport Mode

Tire Pressure Monitoring System (TPMS)

Intelligent Variabel Transmission

Smartstream Gamma II 1.5L MPI

Drive Mode & Terrain Mode

Traction Mode : Sand

Traction Mode : Mud

Rear Cross-traffic Collision-avoidance Assist (RCCA) - style & prime only

6-airbag system (Driver, Passenger, Side & Curtain) - style & prime only

Lane Following Assist (LFA) - prime only

*Spesifikasi dan kelengkapan berbeda di setiap negara dan sewaktu-waktu dapat berubah tanpa pemberitahuan terlebih dahulu

All New Hyundai CRETA Technical Specification
Dimension 6MT IVT
Exterior
Overall length mm 4,315
Overall width mm 1,790
Overall height (roof rack) mm 1,630
Wheelbase mm 2,610
Wheel tread front / rear, mm 1.572 / 1.576
Overhang front / rear, mm 855 / 850
Ground clearance mm 200
Interior
Head room (with sunroof) 1st / 2nd row, mm 1.017 (980) / 985
Leg room 1st / 2nd row, mm 1.051 / 973
Shoulder room 1st / 2nd row, mm 1.404 / 1.380
Hip room 1st / 2nd row, mm 1.312 / 1.310
Cargo area - VDA minimum / maximum, L 416 / 1.384
Engine
Configuration Transverse front mounted driving front wheels
Cylinder capacity cc 1,497
Cylinder layout In-line
Number of cylinders 4
Bore x stroke mm 75,6 x 83,4
Compression ratio 10,5:1
Maximum power PS/rpm 115/6.300
kW/rpm 84,4/6.300
Maximum torque kgm/rpm 14.7/4.500
Nm/rpm 143,8/4.500
Fuel system MPI (Multi Point Injection)
Fuel type Gasoline
Fuel tank capacity L 40
Emission standard EURO 4
Transmission
Type 6-speed manual CVT
Gear ratio (:1) 1st 3.833 2,680 ~ 0,385
2nd 2.143
3rd 1.370
4th 1.036
5th 0.839
6th 0.727
7th -
Reverse 3.700 2,822 ~ 1,822
Final 4.563 6.483
Clutch Type Dry single plate -
Steering
Type Column - Motor Driven Power Steering (C-MDPS)
Overall steering gear ratio 16.4
Number of steering wheel turns lock-to-lock 2.98
Minimum turning radius m 5.4
Suspension
Front MacPherson Strut
Rear Coupled torsion beam axle (CTBA)
Brakes
General Dual-diagonal, split-circuit, power-assisted braking system with EBD
ABS 4-wheel electronic, 4-sensor, 4-channel electronic brake distribution, brake
torque distribution system (EBD)
Front brake type 15in (Φ280) ventilated disc, floating-caliper brakes
Rear brake type 14in (Φ262) solid disc, floating-caliper brakes
Vacuum booster Diameter 10,5in
Boosting ratio 9:1
Master cylinder Type Fixed seal
Diameter, mm 22.22
Parking brake MT / AT EPB
Wheels & Tires
Wheel dimensions 6,5 x 17in alloy wheel
Tire size 215/60R17
Spare wheel type 6,5 x 17 (Steel) w/ 215/60R17
Weight
Curb weight Lightest / heaviest, kg 1.165 / 1.175 1.200 / 1.245
Gross Vehicle Weight (GVW) kg 1,590 1,660
Permissible Axle Weight (PAW) Front / rear, kg 880 / 820 880 / 820
